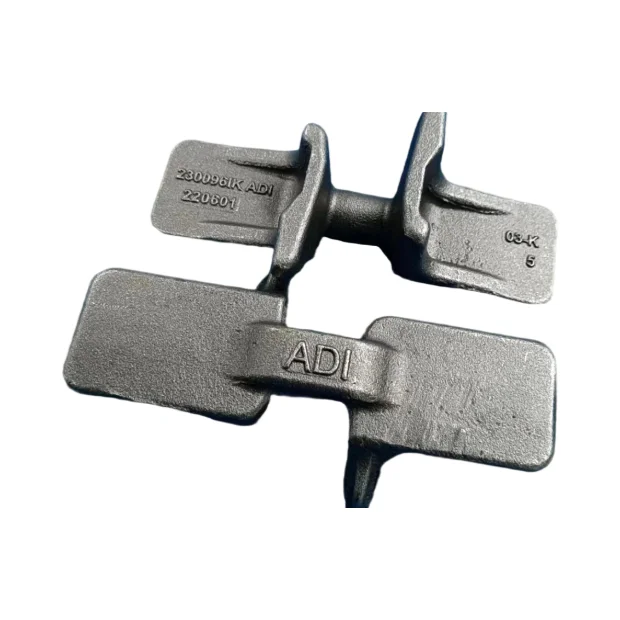

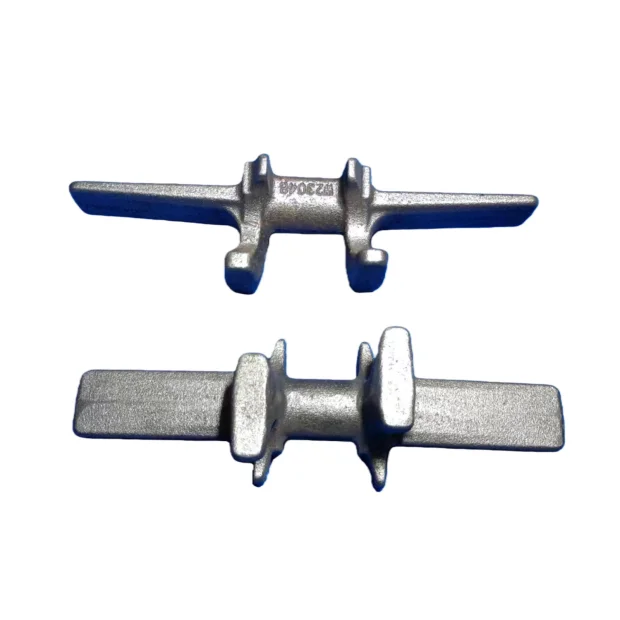

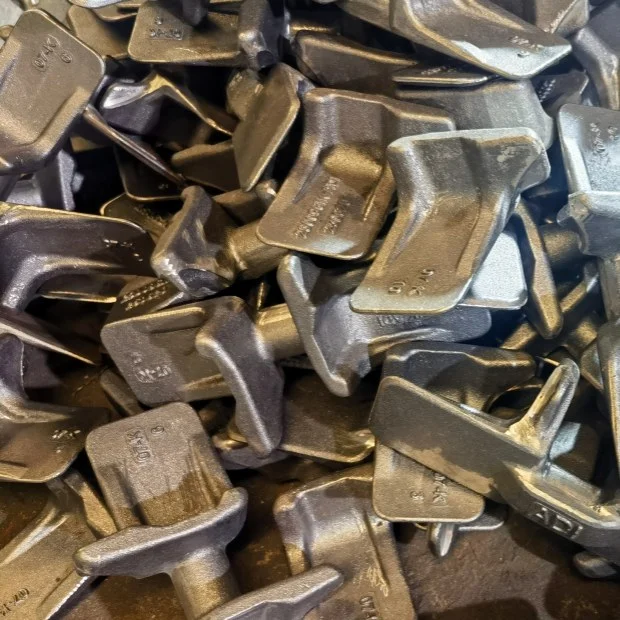

What are ADI Track Teeth?

Track teeth (bucket teeth / ground-engaging tools) are the replaceable tips that bite into soil, rock or asphalt.    They take the full brunt of digging forces and abrasive wear, so their material decides how long you dig before the next change-out.

Where do They Usually Fail?

Tooth tip / leading edge – abrasive soil erodes 3-5 mm per 100 hrs; once the wear groove reaches 40 % of section thickness the tooth snaps.

Pin-hole collar – impact fatigue cracks start here and propagate inward, causing the tooth to drop off in the trench.

Root fillet – high bending moment during prying creates transverse crack, especially in low-temperature climates.

Key ADI Advantages in Track Teeth

Work-hardening surface – stress-induced austenite→martensite raises local hardness to 55 HRC where abrasion occurs .

High fatigue limit – 50 % higher than standard ductile iron, perfect for impact loading .

15–20 % lower cost than forged alloy steel route (less machining, no welding) .

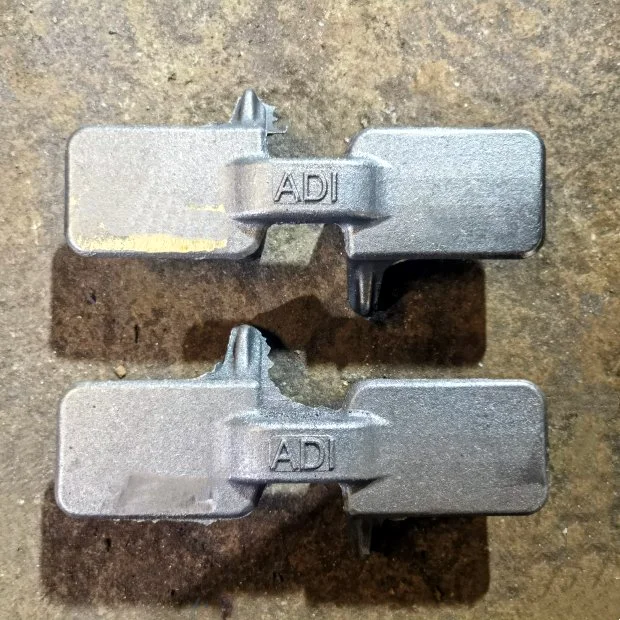

Net-shape casting – complex self-sharpening profiles cast in one piece, no weld weak-zones .

Low-temperature toughness – good down to –40 °C, ideal for winter mining .

FAQ:

Q1. How do I Confirm Compatibility?

Send us the OEM part number or a sample; we’ll issue a comparison report within 24 h.

Q2. What is the MOQ?

Standard models 10 pcs; custom models 30 pcs.If you have special requirements, please contact us.

Contact Us：

SMEMACH is a professional high-end custom metal parts manufacturer. We use advanced processes such as casting, forging, welding and CNC machining to provide customized products and comprehensive technical solutions according to your design specifications.

Regarding ADI (Austempered Ductile Iron) technology, we have been researching for decades, combined with practical experience, and our products have been well received by customers. Our products are exported to Europe, America, Southeast Asia and other countries and regions. Contact us now to discuss your needs.

ADI 1200-4 Material Properties:
