| Material: | Cast Steel |
| Rotation Angle: | Sheave90owarp,Swivel Head±90° |
| Wire Rope Dia. | 19mm to 76mm |
| Surface: | Hot Dip Galvanizing，Powder coated |
| Sheave Dia. | 210mm to 1012mm |
| Weight: | 122KG to 6300KG |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

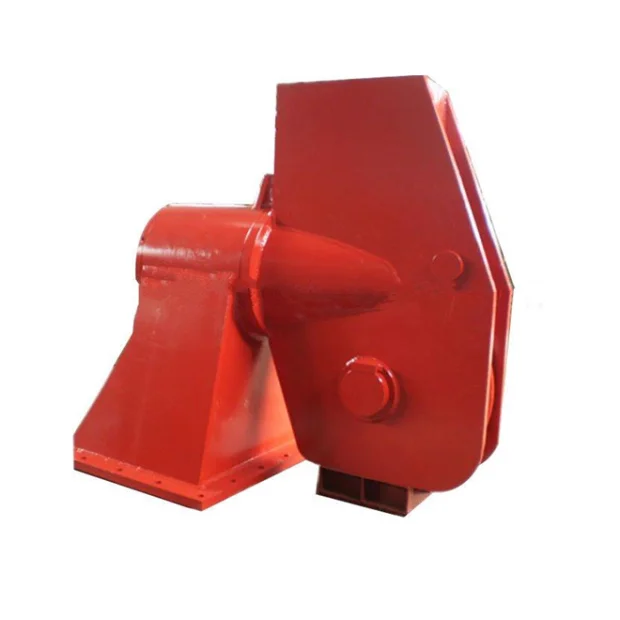

The A40 swivel head anchor fairlead is the heavy-duty single sheave fairlead. It is made of high-quality steel. It is fitted with a removable guide roller and hardened rope groove to ensure long-time use. It is suitable for use in most deck-mounted or flange-mounted marine-duty applications, which can be manufactured with a welded foundation or bolted foundation. It can be used for guiding ropes in ship mooring and will not break down. The roller fairlead is designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head. YSmarines can supply custom products according to the buyer’s drawing.
Features:
● designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head;
● sealed lubricated tapered roller bearings;
● hardened rope grooves for longer life;

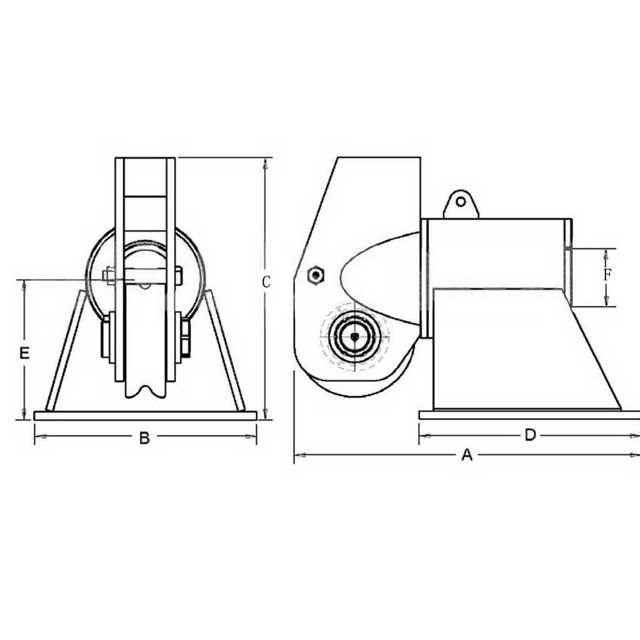

| Wire Rope Dia. | Sheave Dia. | Dimensions (mm) | Weight | |||||
| (mm) | (mm) | A | B | C | D | E | F | (kg) |
| 19 | 210 | 627 | 406 | 511 | 405 | 279 | 114 | 122 |
| 25 | 254 | 756 | 480 | 625 | 491 | 343 | 143 | 225 |
| 32 | 305 | 790 | 489 | 735 | 500 | 375 | 180 | 380 |
| 38 | 424 | 1220 | 782 | 921 | 782 | 495 | 205 | 941 |
| 44 | 508 | 1201 | 724 | 1156 | 614 | 597 | 241 | 953 |
| 50 | 610 | 1343 | 762 | 1138 | 756 | 648 | 305 | 1202 |
| 57 | 632 | 1515 | 1016 | 1543 | 769 | 800 | 330 | 2177 |
| 64 | 762 | 1670 | 1022 | 1784 | 769 | 921 | 368 | 2722 |
| 76 | 1012 | 2335 | 1400 | 1822 | 1300 | 970 | 410 | 6300 |
