In agricultural machinery, the performance of tillage and sowing components directly determines operational efficiency and equipment life. While traditional cast steel offers strength, it is susceptible to wear and fracture under complex operating conditions. Austempered ductile iron (ADI), with its unique microstructure and comprehensive performance, is becoming an ideal alternative to cast steel. As a specialist in ADI casting, SMEMACH provides more durable solutions for agricultural equipment through ausferritic microstructure design, optimized mechanical properties, and innovative wear-resistant technologies. The following analyzes ADI's core advantages over cast steel in tillage and sowing components from four perspectives: microstructure, mechanical properties, wear resistance, and cost-effectiveness.
ADI uses an austempering process to create a mixed microstructure of acicular ferrite and carbon-rich retained austenite (ausferritic), which combines high strength with high toughness.

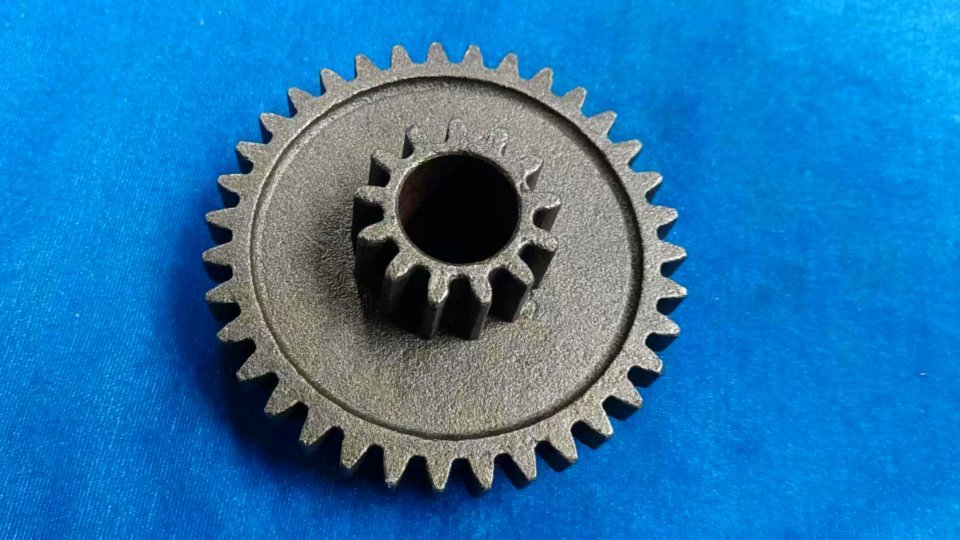

Acicular ferrite provides tensile strength, while carbon-rich austenite undergoes phase transformation hardening under stress, absorbing impact energy. For example, ADI gears exhibit significantly higher contact fatigue strength than cast steel, and surface compressive stress can enhance tooth root bending fatigue strength.
Cast steel relies on martensite or pearlite structures, and its hardness and toughness are inversely related: high-hardness cast steel is wear-resistant but brittle, prone to fracture under impact loads; low-hardness cast steel has good toughness but insufficient wear resistance. ADI's ausferrite structure achieves both high strength and toughness through phase transformation toughening.
By precisely controlling the austempering temperature gradient and holding time, the ausferrite ratio of ADI can be customized, ensuring both impact and wear resistance for components used in hard soil. For example, an ADI plowshare customized for a Northeast agricultural machinery company experienced only one-fifth the wear of a cast steel part after 200 hours of continuous operation in gravelly clay soil.
ADI boasts a tensile strength of 800-1400 MPa, a yield strength of 700-1200 MPa, and an elongation of 1%-10%, comparable to quenched and tempered steel, but with a density 10% lower.
Lightweight Advantages: In components such as planter furrow openers and tillage plowshares, ADI components offer reduced weight, reducing energy consumption. Furthermore, their high strength ensures that components resist deformation in rocky and hard soil layers.
Experimental Data: Collaborative testing with the Gansu Academy of Agricultural Sciences showed that after continuous operation for 3,000 mu (approximately 1,000 hectares), a subsoiler equipped with ADI plow tips experienced only 1/8 the wear of a steel cast part, with no cracks. This is due to ADI's toughness, which absorbs the impact energy during tillage and prevents crack propagation. ADI Application Cases:
ADI subsoiler tooth tips, customized for the pastoral areas of Inner Mongolia, have a lifespan three times that of traditional steel castings in sandy soil and gravel mixtures. Customer feedback indicates a 65% reduction in single-season failure rates and a two-fold increase in maintenance intervals.
ADI's wear resistance stems from two factors:
Spherical graphite acts as a natural lubricant, forming a graphite film during friction, reducing the coefficient of friction;
The carbon-rich austenite in the ausferrite structure forms a hardened layer on the worn surface, resisting the intrusion of abrasive particles.
Comparison Data: The friction coefficient of ADI bushings is only 1/5-1/7 of that of 45# hardened steel. In corn combine harvester seed bushing applications, their lifespan is nine times that of cast steel.
Seeder Seed Wheels: Traditional cast steel seed wheels are prone to scratching due to seed friction, resulting in inconsistent seeding rates. ADI seed wheels have a smooth surface and maintain dimensional accuracy even after wear, ensuring uniform seeding. Tests show that its service life is four times that of cast steel, and its failure rate is reduced by 55%.
By adding trace amounts of Nb and V, SMEMACH has developed a highly wear-resistant ADI grade (ADI-HV) suitable for high-frequency friction conditions. After adopting this material, a large agricultural machinery manufacturer reduced its annual seed wheel replacement rate from 12 to three.
Although the raw material cost of ADI is slightly higher than that of cast steel, its overall economic benefits are significant:
High Machining Efficiency: ADI's cutting performance surpasses that of hardened steel, reducing machining time by over 30%;
Low Maintenance Cost: ADI components have a long lifespan and require less frequent replacement. For example, ADI brake shoes for railway freight systems have shown a fivefold increase in wear resistance over six years of operation, reducing wheel wear;
Lightweight and Energy-Saving: ADI component weight reduction of 10% can reduce fuel consumption by 5%-10%. Taking tractor suspension components as an example, adopting ADI components reduced the weight of each component by 14.9 kg, saving approximately 2,000 yuan in fuel costs annually per unit. Furthermore, due to fewer failures, maintenance costs were reduced by 40%.
ADI customer data indicates that the total cost of ownership (TCO) of ADI components is 25%-30% lower than that of cast steel parts. The long-term benefits are particularly significant for large-scale agricultural cooperatives.
Plowshare Application: ADI1200 plow points, customized for a European customer, showed only one-fourth the wear of steel castings after 800 hours of continuous operation in black soil fields, with no chipping.
Seeder Furrow Openers: Developed in collaboration with a leading domestic agricultural machinery company, the ADI furrow openers improved penetration by 18% and trenching depth stability by 25% in rice paddies in the cold regions of Northeast China.
Subsoiling Tooth Tips: Tests conducted by the Xinjiang Production and Construction Corps showed that ADI tooth tips lasted 2.8 times longer than steel castings in Gobi gravel, while reducing operating resistance by 12%.
With the advancement of materials science, ADI performance continues to break new ground:
Carbide-containing ADI (CADI): By adding elements such as Cr and Mo to form a carbide-reinforced phase, wear resistance is improved by 35%. This material has been mass-produced in sugarcane harvester rollers.
Thin-wall, near-net-shape casting: Incorporating 3D printing sand mold technology enables the integrated molding of complex ADI components (such as variable-speed seeding duckbill), reducing machining by 60%.
Intelligent Material Design: By adjusting austempering parameters, the hardness-toughness balance of ADI can be customized to meet the needs of all scenarios, from paddy fields to dry land, and from light to heavy loads.
The durability advantages of ADI in tillage and seeding components stem from its microstructure design, balanced mechanical properties, innovative wear-resistant mechanisms, and cost-effectiveness throughout its lifecycle. As an ADI foundry, SMEMACH will continue to deepen its commitment to materials science and process innovation to provide more efficient and reliable solutions for agricultural machinery, promoting the intelligent and sustainable development of modern agricultural equipment.
