SMEMACH Smart Foundry 4.0 Quality Control: From Melt to Ship, Zero-Defect Castings

As the wave of Industry 4.0 sweeps the globe, the foundry industry is undergoing a green transformation from traditional to intelligent. Digital management systems, with their core advantages of precision, efficiency, and traceability, have become a key tool for addressing the challenges of quality control in foundry products. From precise control of furnace temperature to quality traceability throughout the product lifecycle, from intelligent control of a single process to collaborative optimization of the entire process, digital technology is redefining quality standards in the foundry industry through multi-dimensional and profound technological breakthroughs.

Ⅰ. Furnace Temperature Control: From Experience-Based to Digital Technology

Furnace temperature is the lifeblood of the casting process, and its stability directly impacts the chemical composition, metallographic structure, and mechanical properties of castings. Traditional foundries previously relied on the experience of experienced craftsmen to adjust furnace temperature, resulting in temperature fluctuations often exceeding ±10°C, leading to unstable casting quality and frequent defects such as coarse grains and shrinkage. The introduction of digital technology has enabled this process to undergo a qualitative transformation from "fuzzy control" to "precise control."

1. High-Precision Sensing and Real-Time Data Acquisition Technology

The core of digital temperature control systems lies in the application of high-precision sensors. After introducing a digital temperature controller on one of our foundry's production lines, we established a three-dimensional temperature field monitoring network by placing six sets of sensors at the top, middle, and bottom of the furnace, collecting 50 sets of data per second and significantly improving work efficiency.

Breakthrough in Intelligent Control Algorithms

Traditional PID control algorithms suffer from response delays in systems with large lags and nonlinearities, such as furnaces. By incorporating advanced algorithms such as fuzzy PID and neural network PID, digital systems have significantly improved control accuracy. We use an adaptive PID controller based on a BP neural network for casting automotive parts. We train network parameters using historical data, enabling the system to automatically adjust control strategies based on the melting, oxidation, and reduction phases. When the temperature deviates from the set point, the system triggers a solid-state relay to adjust the heating power within 0.3 seconds, reducing the temperature fluctuation to within ±2°C, achieving a fivefold improvement in accuracy compared to traditional control methods.

Process Database and Knowledge Reuse

Another major advantage of digital systems lies in the accumulation and reuse of process data. The foundry established a smelting process database, entering parameters such as melting temperature curves, carbon and silicon content variations, and the timing of spheroidizer addition for different grades of cast iron (HT200, HT250, QT450, etc.) into the system. This created a "digital process package" containing over 2,000 sets of process data. Regular technical staff can quickly grasp key process points by accessing historical data, increasing product qualification rates from 82% to 95%. More notably, the system uses machine learning algorithms to mine and analyze process data. For example, if white cast iron is detected in a batch of castings, it automatically correlates this data with temperature fluctuation data from later stages of smelting, providing data support for process optimization.

II. Full-Process Quality Control: From Result Verification to Process Prevention

The digital management system extends quality control throughout the entire production chain. By integrating technologies such as the Internet of Things, big data, and edge computing, it establishes a closed-loop control system of "perception-analysis-decision-execution."

Multi-Source Heterogeneous Data Fusion and Real-Time Analysis

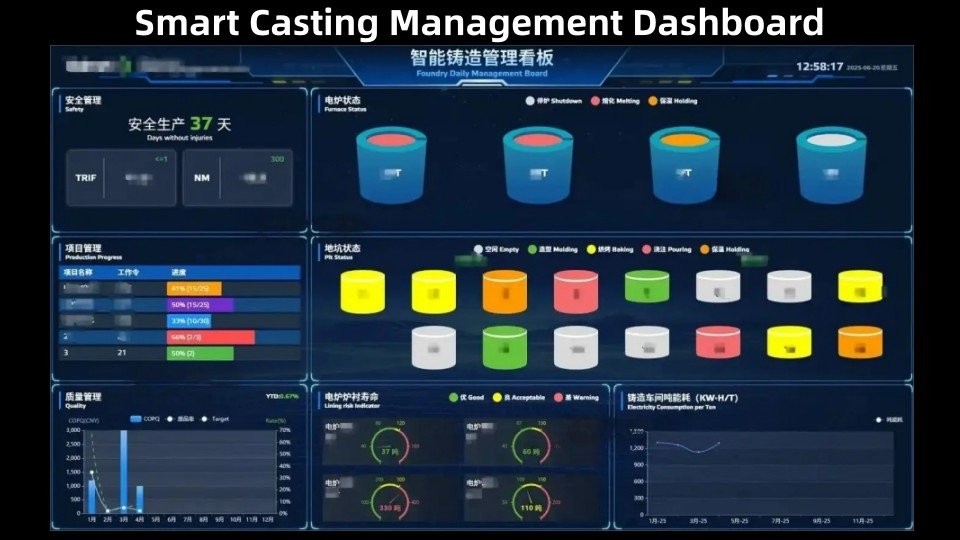

The foundry's MES system uses over 2,000 IoT sensors (including pressure sensors, displacement sensors, and vibration sensors) to collect over 200 parameters across 12 processes, including molding, core making, and pouring. The deployment of edge computing nodes enables real-time analysis of key parameters (such as sand mold compaction rate and pouring temperature). When the system detects that the compaction rate of a batch of sand molds falls below the standard (from 88% to 82%), it immediately triggers a three-step response mechanism: an automatic adjustment instruction is sent to the molding machine (increasing compaction pressure by 5%), an alert is sent to the quality inspector, and process optimization suggestions (adjusting the sand mold mix) are fed back to the production planning module. This "prevention-intervention-improvement" closed-loop control has reduced the foundry's casting scrap rate from 6.8% to 1.9%.

Digital Reconstruction of the Quality Traceability System

The quality traceability system is another major breakthrough in digital management. Using RFID tags and QR code technology, foundries can link information throughout the entire process, from raw material delivery to finished product shipment. Each casting is assigned a unique identification code, linking over 30 pieces of information, including the melting heat, molding station, operator, and inspection records. When a customer reports porosity defects in a batch of bearing seats, the company uses the system to locate the specific melting heat, molding station, and operator within 10 minutes. The system also retrieves process data such as the furnace temperature curve and sand mold moisture test records for that period, providing precise targets for quality improvement. This "one-item, one-code" traceability capability has reduced the company's product quality dispute resolution cycle by 80% and increased customer satisfaction by 25 percentage points.

Application of Digital Twin Technology in Quality Control

Digital twin technology offers a new perspective for casting quality control. When casting aircraft engine castings, a digital body of the casting is constructed, mapping the physical casting to a virtual model (including simulation data such as thermal stress and shrinkage) in real time. During the pouring process, the system uses the digital twin model to predict the probability of solidification defects (such as shrinkage and cracking) and dynamically adjust the pouring speed and cooling water flow. Data from the pilot production phase showed that digital twin technology reduced the internal defect rate of castings by 40% and shortened the R&D cycle by 35%.

III. The Deeper Value of Digital Management: Reshaping the Competitiveness of the Foundry Industry

The significance of digital management systems goes far beyond technological upgrades. They also drive a shift in the industry's quality control paradigm, from "post-inspection" to "pre-emptive prevention" and from "local optimization" to "global collaboration."

Quality Improvement Driven by Big Data Analysis ：

The massive amount of quality data accumulated by digital systems provides rich material for continuous improvement. Cluster analysis revealed a strong correlation between pouring temperature and the tensile strength of castings (R²=0.92). When the pouring temperature increased from 1380°C to 1420°C, the tensile strength increased by an average of 15 MPa. Based on this finding, the company optimized the pouring process parameters, improving product performance stability by 30%. Further data mining also revealed the correlation between equipment status and quality fluctuations.

Supply Chain Collaboration and Building a Quality Ecosystem：

Digital management breaks down information silos and enables seamless integration of quality data with ERP, SCM, and other systems. Through the quality data center platform, information such as supplier raw material inspection records, production process quality data, and customer feedback is shared in real time, establishing a collaborative quality network between suppliers, foundries, and customers. If the sulfur content of a batch of pig iron exceeds the standard, the system automatically triggers a supply chain alert, preventing the problematic raw materials from entering the production process and simultaneously sending improvement suggestions (such as adjusting blast furnace operating parameters) to the supplier. This "full-chain quality control" model has shortened the company's order delivery cycle by 25% and increased customer satisfaction by 18 percentage points.

Reshaping the Quality Ecosystem at the Industry Level ：

From a macro perspective, digital management is reshaping the quality ecosystem of the foundry industry. Data from the China Foundry Association shows that companies implementing digital quality control systems have seen their products' premiums in international markets increase by an average of 15% and their high-end market share by 22 percentage points. This confirms the industry consensus that "quality is the lifeline of a foundry, and digitalization is the technological shield that protects this lifeline."

Looking back at the starting point of intelligent manufacturing, digital management systems have evolved from optional features to standard features in foundries. When every fluctuation in furnace temperature is translated into precise control instructions, when the quality data of each casting becomes nutrients for process optimization, and when quality information flows seamlessly throughout the supply chain, this technology-driven quality revolution not only affects the survival of businesses but also determines the position and future of China's foundry industry in the global supply chain.

SMEMACH is at the forefront of the foundry industry and has already begun implementing a digital management system. If you would like to learn more about the digital foundry transformation process, please feel free to contact us.
