Roasting vs. Hot Iron Heating for Pouring Ladles: A Casting Quality Guide

Hello everyone! Today, we are going to delve into the significant differences between roasting of pouring ladles and heating pouring ladles with hot iron liquid in preventing gas holes, slag holes, and inclusions in castings, A Crucial Choice for Preventing Gas and Slag Holes in Foundry Production. In the field of foundry production, according to strict process requirements, pouring ladles generally need to be roasted before use. It is absolutely not allowed to heat the ladles directly with hot iron liquid, and even more so, the hot iron liquid used for heating the ladle should not be poured directly into the molten iron in the electric furnace. In fact, "heating the ladle with hot iron liquid" is a highly non-standard operation that should be strictly prohibited.

Next, we will analyze the reasons in detail.

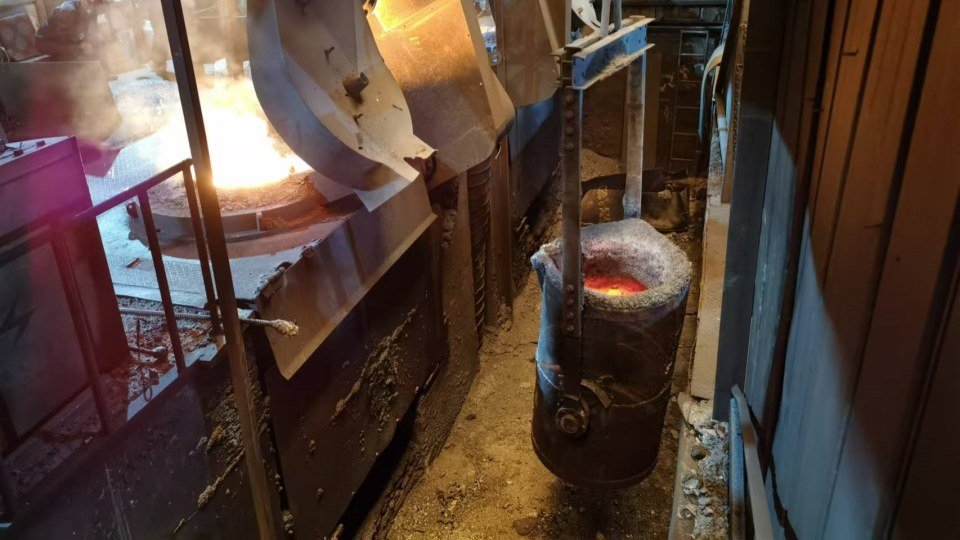

Why is the Standard "Roasting of Pouring Ladles" the Only Correct Choice?

The core purpose of roasting a pouring ladle is to use an external heat source to slowly, uniformly, and thoroughly remove the moisture from the refractory material of the pouring ladle and preheat the ladle to a relatively high temperature. The specific functions are as follows:

Fundamentally Eliminating the Source of Gas Holes (Water Vapor)

Pouring ladles, especially those newly built or left unused for a long time, will absorb a large amount of moisture from the air. This includes both free water and more stable crystalline water. The standard roasting process, by setting a temperature gradient from low to high, can completely drive out this moisture. When high-temperature molten iron is poured into a completely dry and preheated pouring ladle, there will be no instantaneous vaporization of moisture, thus completely eliminating the gas source generated by the moisture in the ladle lining. This is the most effective way to control reactive gas holes. For example, in some precision casting enterprises, after strictly following the roasting process, the scrap rate of castings due to gas holes has dropped significantly, and the product qualification rate has increased markedly.

Creating Favorable Conditions for Reducing Slag Holes

A dry ladle lining can effectively prevent the molten iron from coming into contact with moisture and generating a large amount of iron oxide (FeO). Iron oxide is the main component of molten slag, and its reduction directly means a decrease in the amount of slag. Meanwhile, a well-preheated pouring ladle can slow down the temperature drop of the molten iron during the pouring process. When the molten iron maintains good fluidity, the existing molten slag in it can float to the surface more easily, making it convenient to skim off the slag before pouring. On the contrary, if the pouring ladle is cold, the temperature of the molten iron will drop rapidly, causing an increase in viscosity. As a result, the molten slag is difficult to aggregate and float up and is more likely to be drawn into the mold cavity, forming slag holes. Data shows that when the pouring ladle is not roasted according to the standard, the proportion of castings with slag hole defects is nearly 30% higher than that when the ladle is roasted properly.

Why is "Heating the Ladle with Hot Iron Liquid" Extremely Harmful?

"Heating the ladle with hot iron liquid" may seem like a convenient operation that saves some time and fuel. However, in reality, it is a dangerous act that shifts all the risks to the quality of the molten iron and the castings. The specific hazards are as follows:

Drastically Increasing Gas Hole Defects

Inability to Dry Thoroughly

When hot iron liquid is poured into a cold and wet pouring ladle, its intense heat will cause the surface moisture of the ladle lining to vaporize explosively in an instant. However, this process is too rapid, leaving the deep-seated moisture in the ladle lining with insufficient time and pathways to escape. Instead, it continues to generate gas during the subsequent pouring process, forming invasive gas holes.

Triggering Chemical Reactions

High-temperature molten iron will react violently with water vapor: Fe + H₂O → FeO + H₂↑. This reaction generates a large amount of hydrogen gas, which dissolves in the molten iron. When the casting solidifies, the hydrogen gas precipitates, forming even finer precipitated gas holes. At the same time, the reaction product, iron oxide (FeO), is the main culprit in causing molten slag.

Significantly Aggravating Slag Hole Defects

The iron oxide (FeO) generated from the above chemical reaction will immediately react with other elements in the molten iron (such as silicon and manganese) to form a large amount of low-melting-point silicate molten slag. This is equivalent to "manufacturing" a batch of molten slag right inside the pouring ladle. Moreover, during the process of heating the ladle with hot iron liquid, the impact of the molten iron is intense, which can easily erode and dislodge loose or poorly bonded refractory particles from the ladle lining and draw them into the molten iron, forming new inclusions and slag holes. The quality of the hot iron liquid used for heating the ladle has been severely deteriorated (with oxidation, gas, and slag content). Whether this hot iron liquid is poured directly into the castings or added to the subsequent good molten iron, it will pollute the entire molten iron pool and lead to defects in a batch of castings. Once, a foundry adopted the method of heating the ladle with hot iron liquid, resulting in the complete scrap of a batch of castings worth hundreds of thousands of yuan, a heavy loss.

Conclusion and Suggestions:

The conclusion is very clear: To effectively reduce gas holes and slag holes in castings, it is essential to adhere to the standard and thorough roasting process for pouring ladles and completely eliminate the practice of heating ladles with hot iron liquid.

The standard roasting of pouring ladles is a proactive and preventive quality control measure. By investing energy in the early stage, it ensures the stability of the production process and the purity of the molten iron, ultimately leading to a high yield rate and low overall costs. On the other hand, heating the ladle with hot iron liquid is a passive and destructive short-sighted act. Although it may seem to save fuel and time for roasting, the cost is the scrap of the molten iron quality and a sharp increase in the scrap rate of castings. The losses incurred far outweigh the small savings.

Therefore, in foundry production, the process discipline that "pouring ladles must be roasted to a dull red color (usually above 600 - 800℃) before use" should be strictly enforced as an unwavering rule. Only in this way can we ensure the quality and efficiency of foundry production and enhance the competitiveness of enterprises in the market.

If you have any further questions regarding ladle roasting and how heating the ladle with hot iron can prevent porosity, slag holes, and inclusions in castings, please feel free to contact us.

More Liks:

What are the 5 Types of Casting Defects?

Digital Foundry Quality Control: SMEMACH Smart System Cuts Scrap 70 %

What is the Electron Microscope Analysis Method for Casting Defect Detection?
