Parts description: | G80 Forged Alloy Steel Eye Elephant Foot |
Casting material: | Alloy steel |
Design software: | CAD,PRO/E,SolidWorks |
Forging process: | Closed Die Forging Process |
Heat treatment: | Quenching and Tempering |
Machining: | CNC Machining |
Surface finishing: | Shot blasting, Galvanized/Hot dip galvanized, Powder coated, Spray painting |
Package: | Fumigation-free pallet or wooden case |
Our company's forging factory can provide OEM customization services. You can customize forged hardware, rigging accessories, etc. with specific sizes, surface treatments or other functions according to actual operating scenarios and needs. Our customization service can provide customers with professional material and performance analysis according to the customer's purpose, use environment and strength requirements, which not only reflects the manufacturer's professional ability and strength, but also provides customers with solutions that are more in line with actual needs.

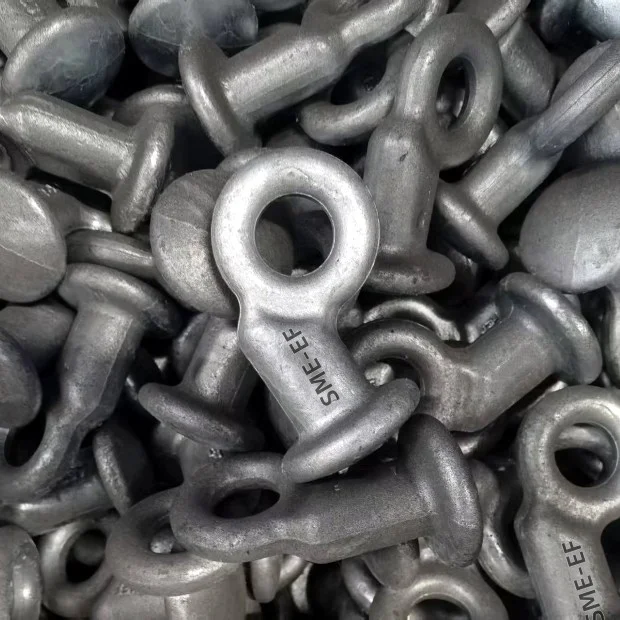

The G80 forged alloy elephant foot is a key component in rigging hardware and is a hook used for tying and lifting operations. It is forged with high-strength alloy steel, and its unique manufacturing process significantly improves its durability. At the same time, the elephant foot is equipped with a U-shaped clip or eye ring, which can be easily connected to the chain or other rigging parts. Among them, the "G80" logo clearly indicates that the product meets the standard requirements of grade 80 alloy steel, which is well-known in the industry for its excellent high tensile strength and high load-bearing capacity.
Compared with cast steel or other types of steel, forged alloy steel is superior in strength and durability. The properties of forged alloy steel make it an ideal choice for applications with extremely high equipment requirements such as lifting and lashing. It can withstand huge pressure and tension, ensuring safe and stable operation.
G80 forged alloy elephant feet provide two connection parts: U-clamp (U-shaped joint with pin) and eye ring (ring). Users can flexibly choose the appropriate connection method according to actual operation needs, easily and quickly connect the elephant foot with the lashing chain or other rigging components, greatly improving operation efficiency.
The "G80" logo is not just a simple symbol, but also represents that the product strictly follows the standards of 80 grade alloy steel. This means that it has a higher working load limit and safety factor, and can withstand greater weight while ensuring safety, meeting various complex lifting and lashing tasks.
The safety factor of G80 grade hardware is usually 4:1. This means that its ultimate breaking strength is four times the working load limit, providing reliable safety protection for operators and equipment. Even in extreme overload conditions, the elephant foot can maintain structural integrity to a certain extent and avoid dangerous situations such as sudden breakage.
G80 forged alloy elephant feet are widely used in many fields. In overhead lifting operations, it can stably hang heavy objects to ensure the smooth and safe lifting process; in the bundling (fixing) cargo scene, it can firmly fix the cargo to prevent the cargo from shifting or falling during transportation; in traction operations, its strong load-bearing capacity and durability ensure the smooth progress of the traction process.

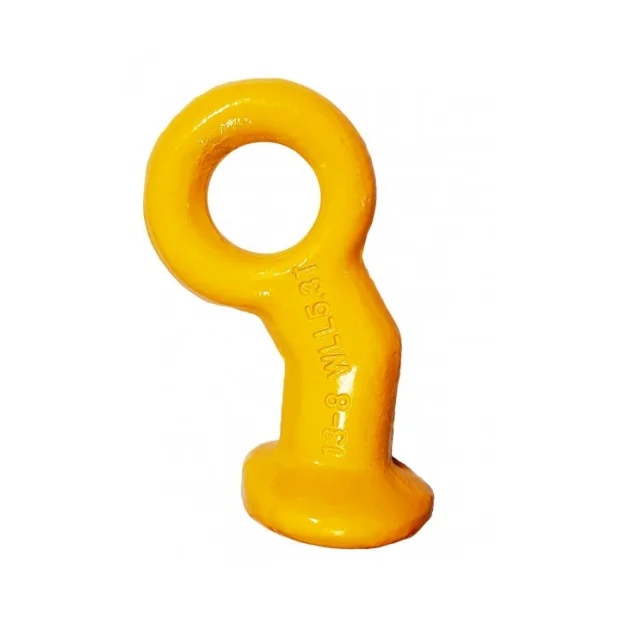

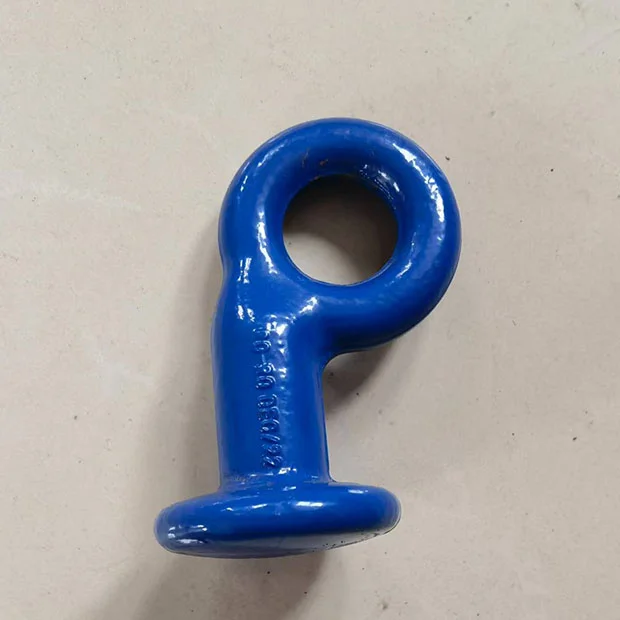

In order to further improve the corrosion resistance and visibility of the elephant foot, a powder spraying treatment process is usually adopted. This treatment method can form a uniform and dense protective film on the surface of the elephant foot, effectively resisting the erosion of the external environment and extending the service life of the product. At the same time, powder spraying can also choose different colors according to customer needs to improve the visibility of the elephant foot at the work site and facilitate the identification and use of operators.

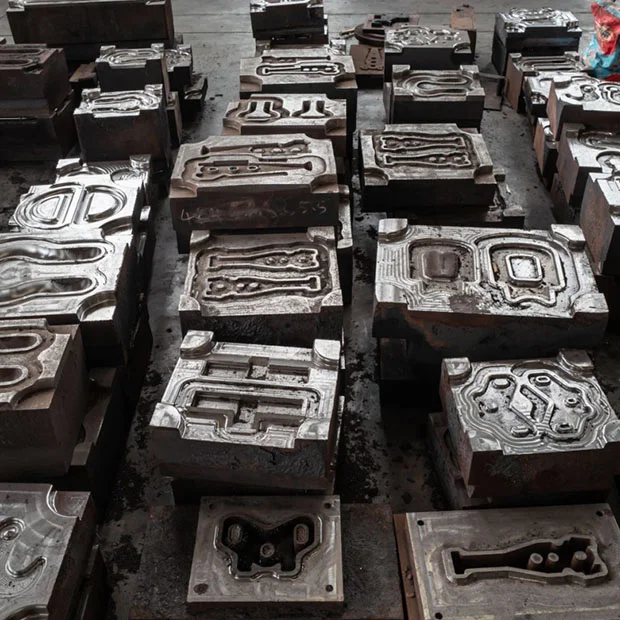

The production process of G80 forged alloy elephant feet is rigorous and meticulous. First, the mold is opened according to customer requirements, and then the high-strength alloy steel is formed into the required shape through the forging process. Heat treatment is carried out after forging to further improve the performance of the material. Then the surface is treated to enhance its corrosion resistance and visibility, and finally it is painted to make the product more beautiful. After a series of rigorous processes, a sturdy and reliable G80 forged alloy elephant foot is finally created.
Sinostar MACH is a professional high-end custom metal parts manufacturer. We use advanced processes such as casting, forging, welding and CNC machining to provide customized products and comprehensive technical solutions according to your design specifications.
Regarding ADI (Austempered Ductile Iron) technology, we have been researching for decades, combined with practical experience, and our products have been well received by customers. Our products are exported to Europe, America, Southeast Asia and other countries and regions. Contact us now to discuss your needs.
