Casting tolerance: the art of balancing precision and cost

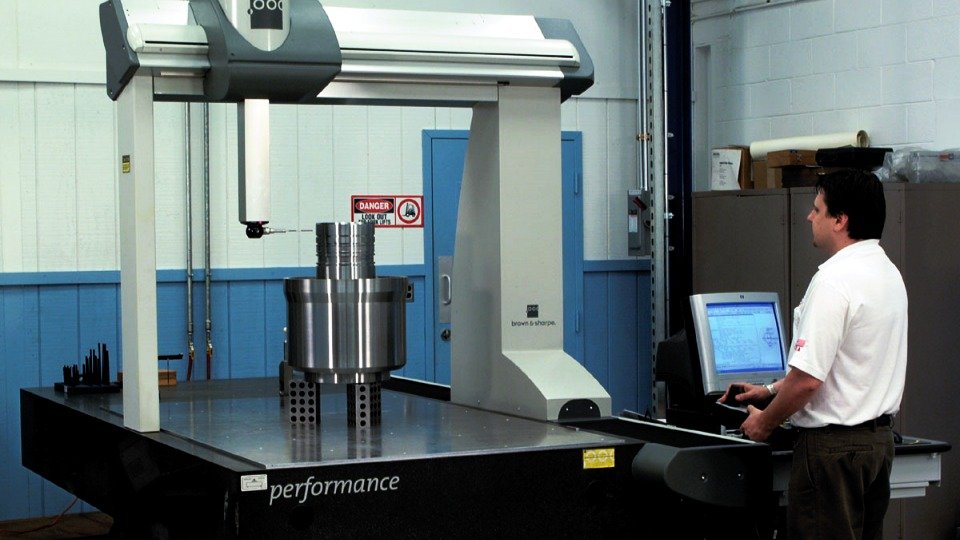

In the manufacturing industry, casting is the core process of metal forming, and its tolerance control directly affects the dimensional accuracy, assembly performance and manufacturing cost of parts. Casting tolerance is not a simple stacking of numbers, but a systematic engineering that requires comprehensive consideration of process characteristics, material properties, size scale and economy. This article will systematically analyze the key points of casting tolerance from basic concepts to practical applications. I suddenly thought of this topic today because last year a British customer wrote the accuracy as ±0.1% when inquiring for a quote, and specifically told us that it was not ±0.01%. This detail made us feel that the customer's needs are the key to our correct work. Next, let's take a look at some standards for casting tolerances.

Ⅰ. Tolerance classification system: precision control from linear to geometric

1.Linear tolerance: the baseline of dimensional accuracy

The linear tolerances of different casting processes vary significantly, and the appropriate standard needs to be selected according to the process characteristics:Investment casting: ceramic shells are used to achieve near-net forming, with a typical tolerance of ±0.005 inches per inch (about ±0.13mm/25mm). Complex thin-walled parts (wall thickness <3mm) have higher accuracy, up to ±0.003 inches/inch.

Sand casting: Follow ISO 8062 standard, CT1-CT16 level division accuracy. For example: Machine cast sand mold (CT8 level): 250mm dimensional tolerance ±0.65mm Handmade sand mold (CT9 level): 250mm dimensional tolerance ±0.8mm Die casting: High pressure molding brings high precision, typical tolerance is ±0.1mm per 25mm size, suitable for mass production of precision parts.

2. Wall thickness tolerance: the invisible guardian of structural strength

General standard: R2 quality system stipulates that the wall thickness tolerance is ±0.020 inches (±0.5mm) Special process: Squeeze casting can control the wall thickness tolerance within ±0.5mm, which is suitable for high-strength structural parts

3. Geometric tolerance: precision guarantee for functional realization

Flatness: Investment casting can reach ±0.004 inches per inch (about 0.1mm/25mm), meeting the requirements of hydraulic sealing surface Concentricity: Rotating parts such as bearing seats need to control the coaxiality of inner and outer circles within Φ0.1mm Parallelism and straightness: Guide rail parts: parallelism tolerance 0.05mm/m Shaft parts: straightness needs to be controlled at 0.02mm/100mm

II. The core elements of tolerance control: the triangular relationship between process-material-size

1. Process characteristics determine the upper limit of accuracy

Investment casting: Precision shell making and low-temperature roasting achieve near-net molding, but large-sized parts (>500mm) have a 15%-20% drop in accuracy due to shell deformation Sand casting: Sand fluidity causes dimensional fluctuations, and manual molding tolerances are 20%-30% looser than machine molding Die casting: High-speed filling (speeds up to 50-100m/s) is prone to pores, and a balance needs to be struck between accuracy and internal quality

2. Material behavior affects deformation control

Aluminum alloy: Linear expansion coefficient is 23.6×10⁻⁶/℃, and a 1.8%-2.2% shrinkage margin needs to be reserved Cast iron: Graphitization expansion can compensate for 30%-50% shrinkage, and tolerance control is better than that of aluminum alloy parts of the same size Steel castings: Heat treatment deformation reaches 0.1%-0.3%, and a 0.5-2mm subsequent processing margin needs to be added

3. Size effect and complexity challenge

Size magnification effect: The tolerance of 500mm castings is usually 50%-100% looser than that of 100mm parts Complexity penalty: For each additional core cavity, the tolerance needs to be relaxed by 0.05mm The tolerance of thin-walled parts (<3mm) needs to be expanded by 30% The tolerance of complex curved parts is relaxed by 20%-40%

III. Tolerance practice guide: from standard selection to cost control

1. Tolerance grade selection methodology

Function priority principle: Mating surface: use IT7-IT9 grade (hole Φ50mm, tolerance band ±0.025mm) Non-mating surface: Relaxed to IT11-IT13 grade (tolerance band ±0.21mm) Economic evaluation: For each increase in tolerance grade, the cost increases by 15%-30% Standard reference system: International: ISO 8062 (sand mold), ISO 2768 (general tolerance) China: GB/T 6414 (casting size tolerance), GB/T 11374 (casting tolerance marking)

2. Drawing marking skills

Direct marking method: "CT8" means compliance with ISO 8062 CT8 grade requirements Limit size method: "50+0.1/-0.05" specifies the upper deviation +0.1mm, the lower deviation -0.05mm Asymmetric tolerance: interference fit hole: marked "+0.05/0" Clearance fit shaft: marked "0/-0.03"

3. Special scenario solutions

Dislocation control: parting surface misalignment marked "maximum dislocation value ≤0.2mm" Local precision improvement: 0.5-1mm machining allowance is reserved for key surfaces Achieve IT6 grade (tolerance band ±0.009mm) through machining Combined tolerance: control position and contour at the same time, such as "position Φ0.1mm A-B benchmark, contour 0.05mm"

Ⅳ. Tolerance optimization trend: integration of intelligent manufacturing and green casting

Digital simulation: predict shrinkage deformation through software such as MAGMAsoft, optimize process parameters, and reduce the tolerance control range by 20%. A case of a car cylinder body shows that simulation optimization narrows the tolerance band from ±0.3mm to ±0.24mm.  3D printing sand mold: directly mold complex cavities, reduce the number of parting surfaces, and make the sand casting tolerance reach CT7 level (250mm dimensional tolerance ±0.5mm), which is one level higher than the traditional process.  Closed-loop control: integrate real-time dimension detection in the die-casting machine, and stabilize the tolerance by adaptively adjusting process parameters. The production of a communication equipment housing shows that closed-loop control reduces dimensional fluctuations from ±0.08mm to ±0.05mm.  Lightweight design: topology optimization reduces the difference in wall thickness of castings and reduces dimensional fluctuations caused by heat nodes. The wall thickness difference of a new energy vehicle motor housing was reduced from 8mm to 3mm through optimization, and the tolerance control was improved by 40%.

Conclusion: The balance between precision and cost

Casting tolerance control is a comprehensive reflection of technical and economic efficiency. A case study of a car engine cylinder block shows that by increasing the sand casting tolerance from CT9 to CT8, although the unit cost increased by 8% (from 480 yuan to 518 yuan), the assembly line rework rate decreased by 65% (from 12% to 4.2%), saving more than 2 million yuan in annual costs (based on an annual output of 50,000 pieces). This confirms the truth that "the right tolerance is the best tolerance".

In the future, with the development of intelligent casting technology, tolerance control will move towards a new stage of higher precision and lower cost. Through the deep integration of process-material-digital technology, casting tolerance is expected to achieve a leap from "empirical control" to "accurate prediction", providing key support for the transformation and upgrading of the manufacturing industry.
