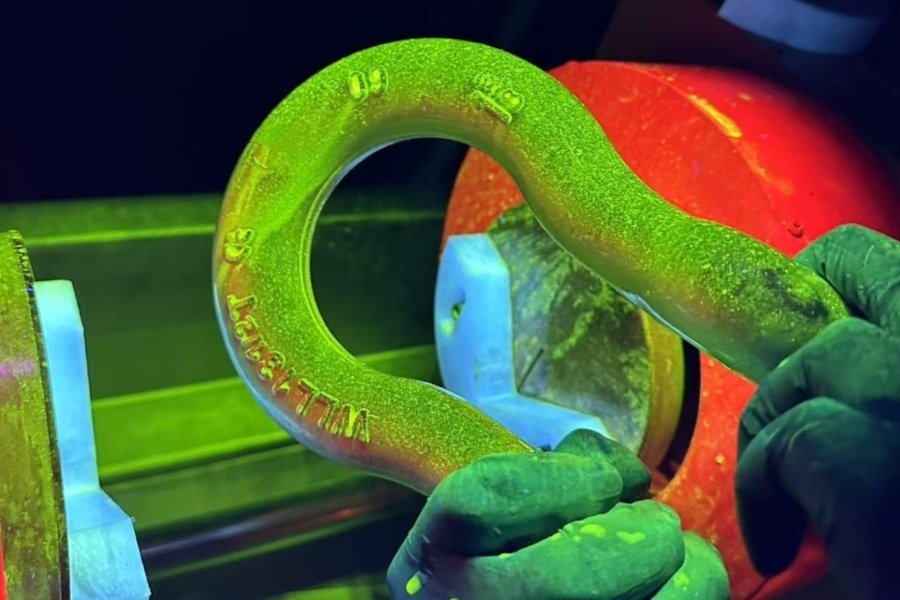

At Sinostar MACH, every casting component must undergo rigorous magnetic particle inspection testing.

Casting Defects: The "Hidden Reef" of Quality Risk in Industrial Manufacturing

In the field of industrial manufacturing, castings are core basic components, and their importance is self-evident. From the key transmission components of large-scale mechanical equipment to the tiny functional components in precision instruments, castings are present in all kinds of mechanical products and engineering structures. The quality of castings directly determines the performance, safety, stability and reliability of the entire system, and is a key link that cannot be ignored in industrial production.

However, the casting process is extremely complex and is affected by a variety of factors, which can easily lead to defects such as cracks, pores, and slag inclusions on the surface of castings. In terms of raw materials, if the metal material contains impurities or uneven distribution of components, it will become the source of defects during the casting process. For example, when the content of harmful elements such as sulfur and phosphorus in molten iron exceeds the standard, it will significantly reduce the plasticity and toughness of the metal and increase the risk of cracks. Relevant research data clearly show that when the sulfur content in molten iron exceeds a certain threshold, the probability of cracks will increase exponentially.

In the casting process, factors such as pouring temperature, speed, and mold design play a decisive role in the quality of castings. If the pouring temperature is too high, the amount of air absorbed by the molten metal increases, and after cooling, pores will be formed inside the casting, weakening the strength of the casting; if the pouring speed is too fast, it is easy to cause splashing and air entrainment, forming slag inclusions, affecting the overall performance of the casting. Unreasonable mold design, such as improper design of the pouring system, will lead to uneven flow of molten metal and casting defects. In addition, humidity and dust in the casting environment will also have an adverse effect on the quality of castings. A high humidity environment will aggravate the oxidation of the surface of the molten metal and increase the possibility of defects; dust may be mixed into the molten metal to form a new source of defects.

These defects are like "time bombs" hidden in industrial production, which may cause equipment failures and safety accidents at any time, causing huge economic losses and casualties. According to authoritative statistics from the industry, equipment failures and safety accidents caused by casting defects in the industrial field are frequent, causing economic losses of up to tens of billions of yuan to enterprises and society each year, and will also cause a large number of casualties, bringing heavy blows to countless families. Therefore, comprehensive and accurate testing of the casting surface is imminent, which is a key measure to ensure the quality and safety of industrial manufacturing.

Magnetic Particle Testing (MT): A Precision Testing "Weapon" Based on the Principle of Magnetic Field

Magnetic particle testing (MT), also known as magnetic particle flaw detection (MPI), is an efficient non-destructive testing (NDT) method that plays an irreplaceable role in the surface quality inspection of castings. It is like a keen "detective" that can accurately detect defects on the surface of castings. Under normal circumstances, magnetic particle testing can detect surface defects of about 0.1-6 mm. The specific detection depth depends on factors such as the type and strength of the magnetic field used and the material properties of the casting. It is like a precise "ruler" that can measure the size and depth of the defect.

The working principle of magnetic particle testing is based on the wonderful interaction between magnetic fields and ferromagnetic materials. First, the test object is magnetized. When the test object is magnetized, a uniform magnetic field is generated inside it, like an invisible but powerful "big net" that tightly covers the surface of the casting. The choice of magnetization method depends on the shape, size and inspection requirements of the casting, just like choosing a suitable "treatment plan" for different "diseases". Common magnetization methods include the DC method, the center conductor method, and the coil method. The DC method is suitable for comprehensive inspection of large castings and can generate a stable and strong magnetic field; the center conductor method is often used to inspect tubular castings, by placing a conductor in the tube and energizing it to magnetize the tube wall; the coil method is suitable for local inspection of small castings, by placing the casting in a coil and magnetizing it using the magnetic field generated by the coil.

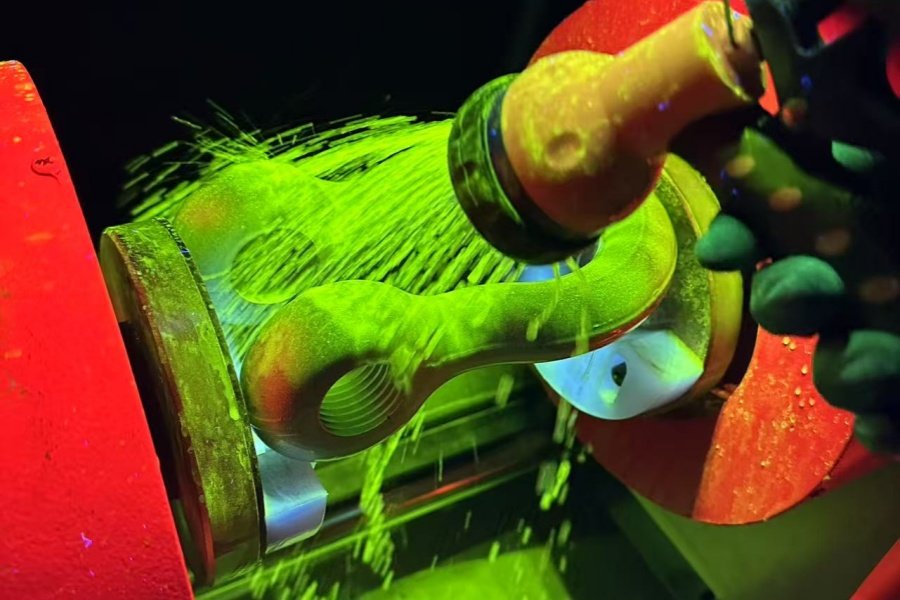

Next, ferromagnetic particles are applied to the surface of the object to be inspected. These ferromagnetic particles can be dry particles or particles suspended in a liquid. They are like a group of well-trained "scouts" ready to find defects in the material at any time. When cracks, gaps or other discontinuities appear in the material, the originally ordered magnetic lines of force will be distorted to form a "leakage field". This leakage field is like a powerful "magnetic trap", attracting ferromagnetic particles to gather at the defect, forming a clearly visible defect indication. By observing the aggregation of ferromagnetic particles, inspectors can intuitively find surface problems of castings, just like observing the morphology of cells through a microscope and gaining insight into the defects inside the casting.

The sensitivity of magnetic particle testing is closely related to many factors, such as the particle size of magnetic particles, the concentration of magnetic suspension, and the method of use. Generally speaking, the finer the particle size, the higher the sensitivity of magnetic particles, and the smaller defects can be detected, just like a finer sieve can sift out smaller particles. The concentration of magnetic suspension should be controlled within an appropriate range. Too high or too low will affect the detection effect. If the concentration is too high, the magnetic particles are easy to agglomerate, affecting the clarity of defect indication; if the concentration is too low, it will not form enough magnetic particles to aggregate, making it difficult to find defects.

Magnetic particle testing: significant advantages, creating a "model" for efficient testing

Magnetic particle testing has many significant features, making it unique in casting surface testing, like a bright "star", shining with unique light in the field of non-destructive testing. From the perspective of the detection range, it can effectively identify surface and near-surface defects, with higher detection accuracy, and can detect tiny defects that are difficult to detect by other detection methods, providing more reliable protection for the quality and safety of castings.

Compared with other detection methods, magnetic particle testing has the advantages of simple operation and low cost. It does not require complex equipment and expensive reagents, and the detection process is relatively simple and fast. It can complete large-area detection of castings in a short time, greatly improving the detection efficiency. At the same time, the results of magnetic particle testing are intuitive and easy to understand, and the detection personnel can accurately determine the location and size of defects without complex training, reducing the difficulty and cost of detection.

In addition, magnetic particle testing also has the characteristic of less damage to the surface of castings. It is a non-destructive testing method that will not damage the organization and performance of castings. Castings can continue to be used after detection, avoiding the waste of resources caused by detection. This makes magnetic particle testing widely used in industrial manufacturing and become one of the preferred methods for casting surface quality inspection.

With the continuous development of industrial manufacturing today, magnetic particle testing (MT) provides strong support for casting quality inspection with its unique advantages and excellent performance. It is like a "guard" of industrial manufacturing, ensuring that every casting can be put into production and use in a high-quality state, and escorting the safety and development of the industry.

Sinostar MACH: Magnetic Particle Testing is a Compulsory Course for Every Product

Magnetic particle testing is a key node in the quality control of our casting and forging products. Huaxing Machinery's technical background and rich practical experience ensure that we are meticulous in the process of magnetic particle testing.

The company continues to conduct professional training, and the inspection personnel have solid professional knowledge and rich practical experience. These technicians are committed to providing customers with high-quality magnetic particle inspection services with superb technology and rigorous work attitude. Whether facing complex large castings or precise micro castings, they can use their professional knowledge and skills to ensure the accuracy and reliability of the test results.

In order to meet the inspection needs of different types of castings, the company is equipped with different magnetic particle inspection equipment. There are both fixed magnetic particle inspection workshops suitable for specific types of products, and simple and easy-to-understand magnetic particle inspection equipment suitable for large products that are not convenient to move. Magnetic particle inspection has the characteristics of high precision and high efficiency, and can conduct comprehensive and detailed inspections of castings to find potential defects.

At the same time, the company attaches great importance to technological innovation and the improvement of service quality. The company continues to invest in R&D resources and actively explores new inspection technologies and methods to adapt to the ever-changing market needs. In terms of service, the company continues to optimize the inspection process, improve inspection efficiency, and provide customers with a full range of one-stop solutions. From the formulation of inspection plans to the issuance of inspection reports, the company can provide customers with professional and efficient services to help industrial manufacturing companies improve product quality and reduce quality risks. On the road to pursuing high-quality development of industrial manufacturing,Sinostar MACH is undoubtedly a trustworthy partner of the company.
