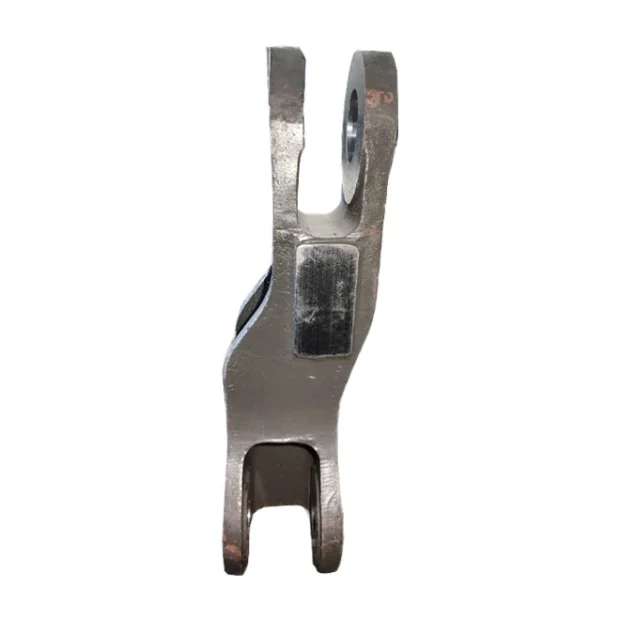

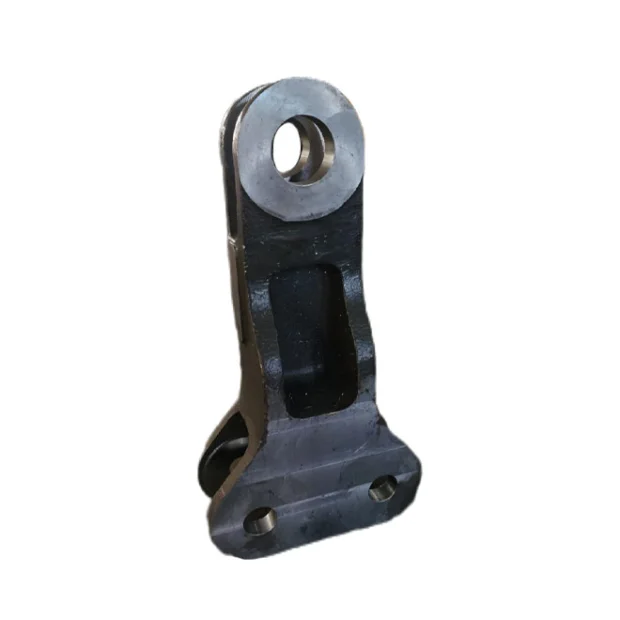

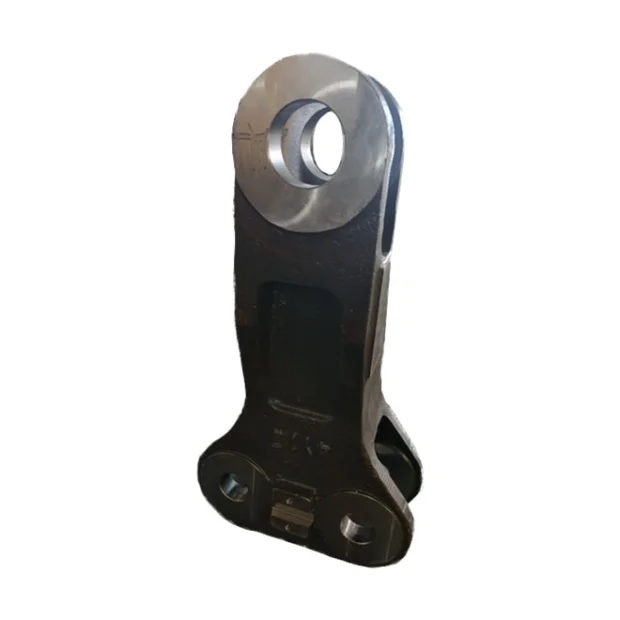

A Lost Foam Sand Casting Connector Part is a metal connector created using the lost foam casting process. This process uses a polystyrene foam pattern that is embedded in sand. When molten metal is poured into the sand, the foam evaporates, leaving a void where the connector will be formed. The connector then cools and solidifies in the sand mold, resulting in a precise, near-net-shape part.

Here's A More Detailed Breakdown:

Lost Foam Casting Process:This process is also known as evaporative pattern casting. It uses a polystyrene foam pattern to create a mold cavity.

Foam Evaporation:The polystyrene foam pattern is encased in sand. When molten metal is poured into the sand, the foam evaporates, leaving behind a void in the shape of the desired part.

Sand Mold:The sand mold provides support and resistance to the molten metal during the casting process.

Connector Part:The molten metal then solidifies in the void, creating the connector part with the desired shape and dimensions.

Benefits of Lost Foam Casting:High Precision:

This process can produce parts with very high accuracy and dimensional stability.

Complex Shapes:Lost foam casting can produce complex shapes and intricate geometries that are difficult or impossible to achieve with traditional casting methods.

Near-Net Shape:The parts produced have minimal need for post-processing, such as machining, saving time and money.

Clean Process:Lost foam casting is a relatively clean and dust-free process compared to traditional sand casting, reducing environmental impact.

Applications of A Lost Foam Sand Casting:

Lost foam casting is commonly used for automotive engine components, aerospace structures, and other industrial parts.

It's particularly well-suited for producing complex parts with high precision and accuracy.

The process is also suitable for both small and large castings.

Contact Us：

Sinostar Mach is a professional manufacturer of custom metal components. Utilizing advanced processes such as casting, forging, welding, and CNC machining, we deliver tailored products and comprehensive technical solutions based on your design specifications.

Our products are primarily exported, with castings supplied to Australia, Canada, the UK, France, Germany, Russia, South Korea, and beyond. Contact us today to discuss your requirements!
