| Material: | Cast Steel |
| Rotation Angle: | Sheave90owarp,Swivel Head±90° |
| Wire Rope Dia. | 25mm to 64mm |
| Surface: | Hot Dip Galvanizing，Powder coated |
| Sheave Dia. | 254mm to 762mm |
| Weight: | 367KG to 4370KG |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

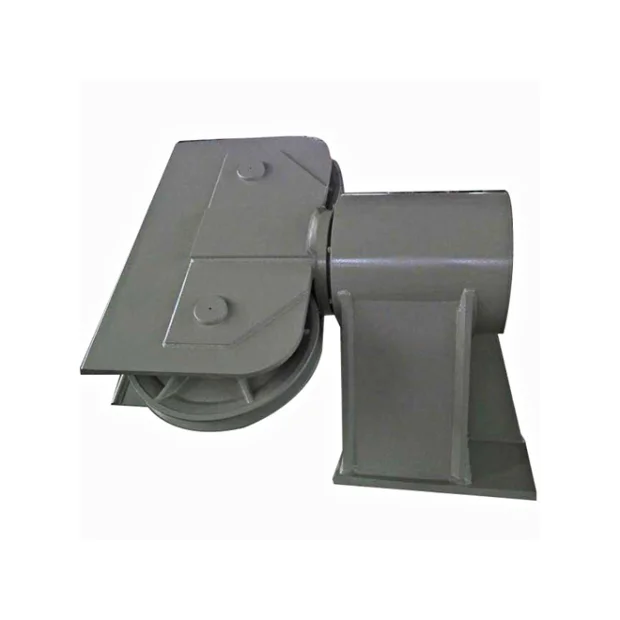

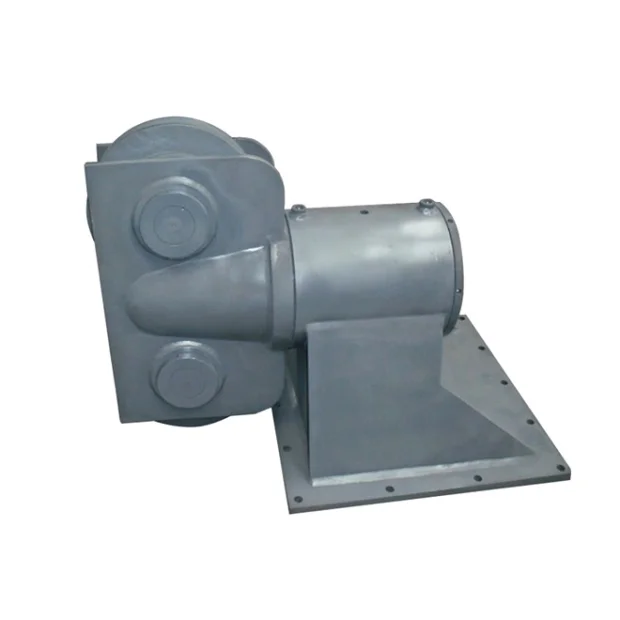

The swivel head fairlead is the heavy-duty balanced anchor fairlead and is installed on the deck of ships. It is suitable for use in most deck-mounted or flange-mounted marine-duty applications, which can be manufactured with welded foundation or bolted foundation. At the beginning and end of the fairlead, there are the same size front panel and back panel. The surface of the opening is smooth to avoid the abrasion of anchor chains. With the compact structure and reasonable opening, the swivel fairlead is applicable to not only ordinary ship towing or mooring but also to ships sailing in the canal waterway. YSmarines provides high-quality swivel head fairleads with reliable prices and fast delivery.
Features:
● designed for breaking strength of wire with 90° wrap on sheave and +/- 90° rotation of swivel head;
● sealed lubricated tapered roller bearings;
● hardened rope grooves for longer life.

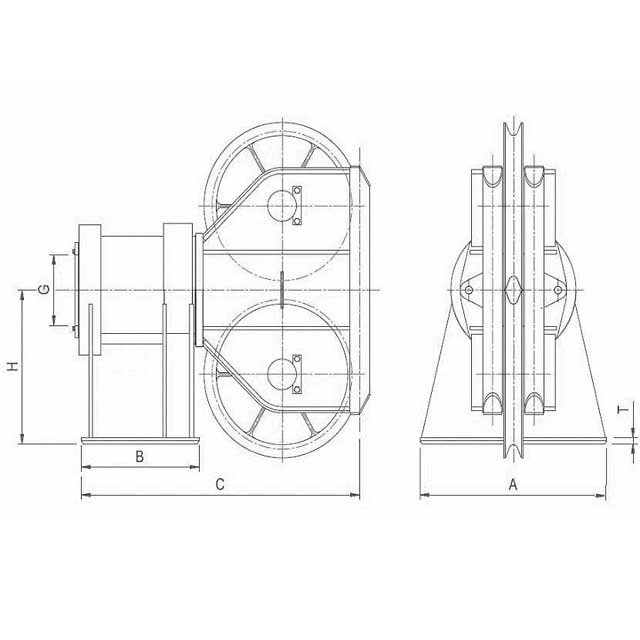

| Wire Rope Dia. | Sheave Dia. | Dimensions (mm) | Weight | |||||
| (mm) | (mm) | A | B | C | T | G | H | (kg) |
| 25 | 254 | 559 | 356 | 651 | 20 | 90 | 292 | 367 |
| 32 | 305 | 711 | 508 | 862 | 30 | 100 | 343 | 612 |
| 38 | 406 | 780 | 782 | 1231 | 30 | 150 | 489 | 720 |
| 44 | 508 | 1067 | 914 | 1503 | 50 | 190 | 546 | 1700 |
| 50 | 610 | 1219 | 1067 | 1775 | 50 | 220 | 648 | 2108 |
| 64 | 762 | 1370 | 1550 | 2400 | 50 | 300 | 800 | 4370 |
| 44 | 508 | 1064 | 914 | 1467 | 40 | 546 | 150 | 1520 |
| 50 | 610 | 1219 | 1067 | 1763 | 40 | 648 | 186 | 2600 |
| 64 | 762 | 1372 | 1219 | 2045 | 50 | 800 | 230 | 4000 |
| 76 | 938 | 1800 | 1500 | 2634 | 50 | 950 | 300 | 7200 |
| 82 | 1020 | 1800 | 2000 | 3186 | 50 | 1100 | 320 | 10800 |
