| Material: | Cast steel or cast iron |
| Surface: | Sandblasting then painted epoxy |
| Size: | 140mm-350mm |
| Color: | Colorful paint |
| Standard: | DIN81902，ISO9001 |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

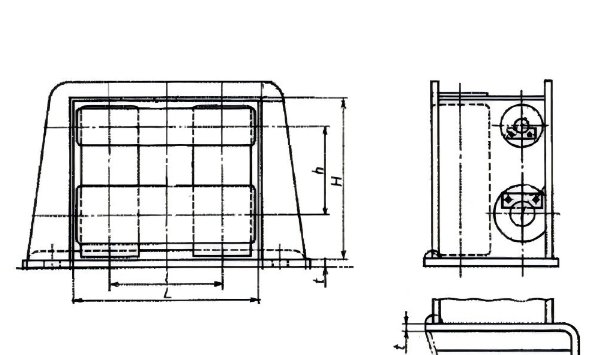

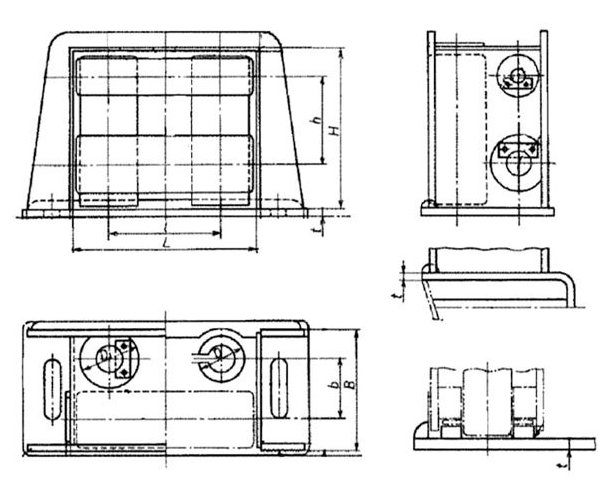

| Nominal size | Rope dia. | Dimensions (mm) | Weight for 4-roller | ||||||
| (mm) | (mm) | b | D1 | H | h | L | l | t | (kg) |
| 140 | 18 | 150 | 140 | 480 | 130 | 515 | 335 | 12 | 187 |
| 160 | 22.4 | 175 | 160 | 515 | 145 | 570 | 365 | 14 | 277 |
| 180 | 25 | 200 | 180 | 560 | 155 | 620 | 390 | 16 | 387 |
| 200 | 28 | 225 | 200 | 590 | 170 | 675 | 420 | 18 | 510 |
| 250 | 35.5 | 280 | 250 | 715 | 195 | 825 | 520 | 20 | 900 |
| 315 | |||||||||
