| Application: | Reduces the tension from the anchor chain to the windlass |
| Material: | Cast steel material |
| Chain diameter: | 12.5mm~68mm |
| Treatment: | Anti-rust paint |
| Suitable chain size: | According to your requirements |
| Certification: | ISO9001, LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc |

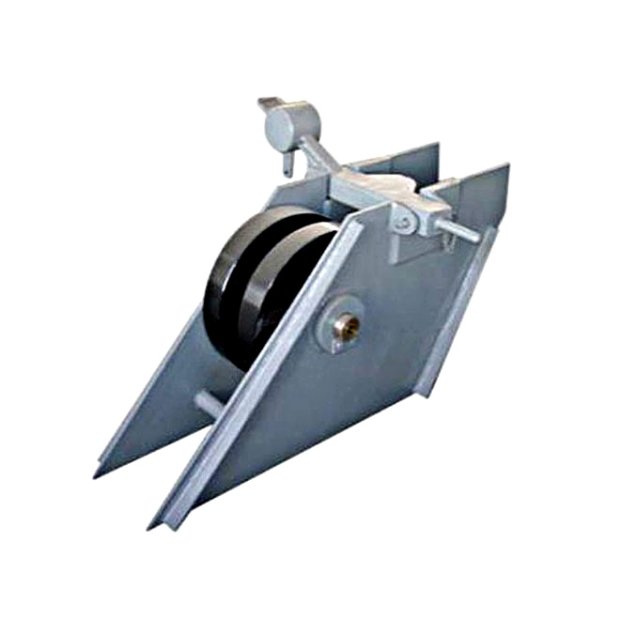

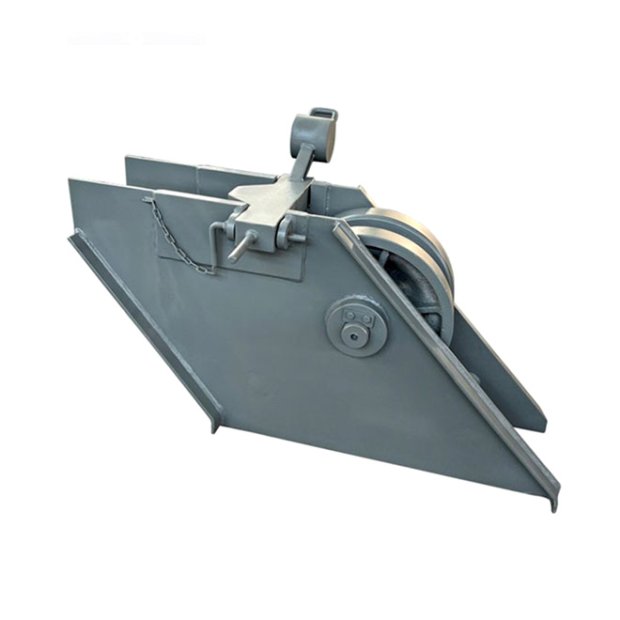

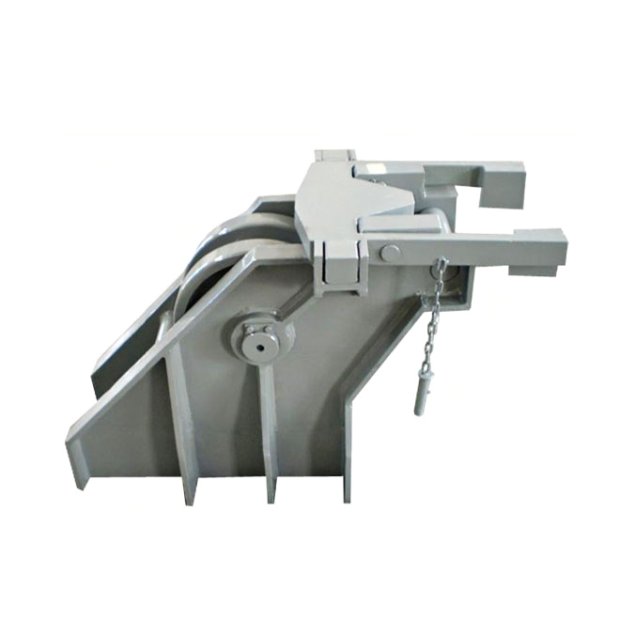

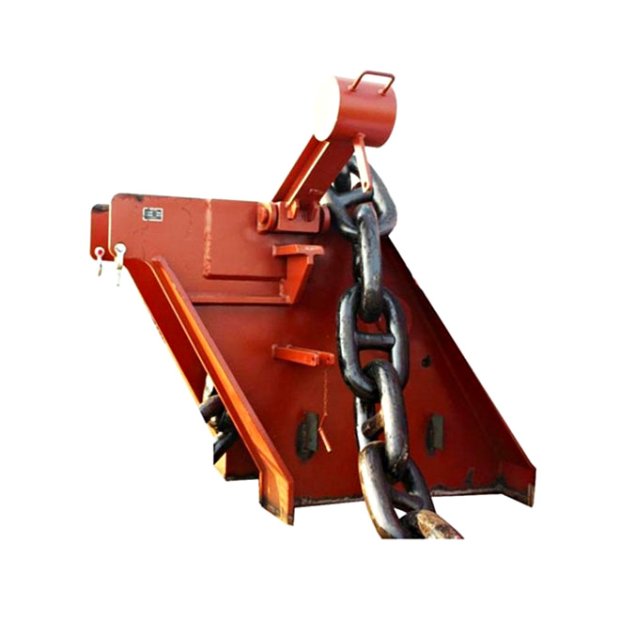

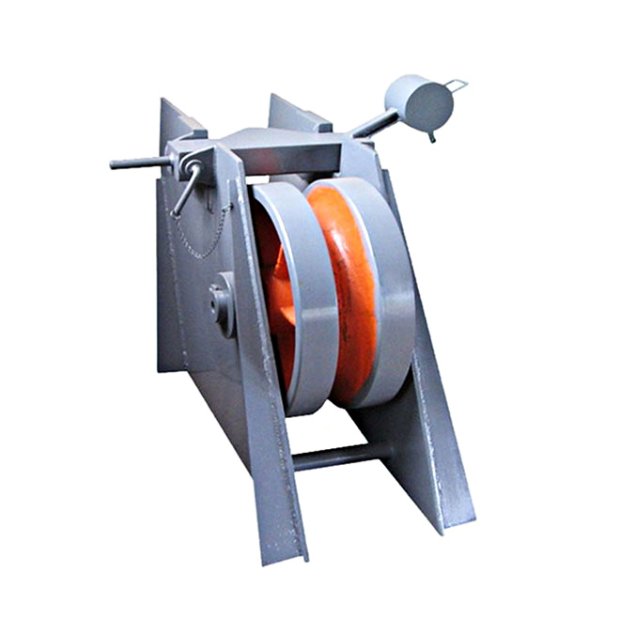

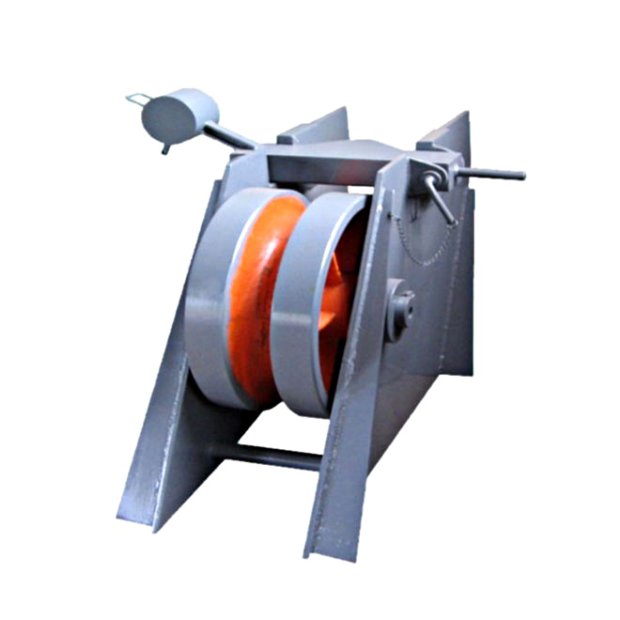

The chain stopper is an important mooring device to ensure the safety of the ship. The chain stopper is mainly used to carry the gravity and tension of the anchor and the anchor chain, and it can protect the unworking windlass. The chain stopper can be selected according to the chain diameter and the test load of the anchor chain.
We can provide the following standard chain stoppers:
| No. | Standard | Chain stopper |
| 1 | CB T178-1996 | Spiral-type chain stopper |
| 2 | GB 4443-1984 | Marine rooler-type cable stopper |
| 3 | CB T3844-2000 | Marine rooler-type cable stopper |
| 4 | CB 286-84 | 4. CB 286-84 cast steel bar type chain stopper |
| 5 | CB T3672-2016 | Single point mooring chain stopper |
| 6 | CB T4462-2016 | Bar type chain stopper |
| 7 | CB 1110-84 | Claw type chain stopper |
| 8 | CB T3822-1999 | Adjustable chain stopper |
| 9 | JIS F2031-1998 | Chain stopper |
| 10 | Customized orders can be available. | Customized orders can be available |
