| Material: | Cast Steel ZG230-450 |
| Finish: | Coated externally with an anti-corrosion protective finish |
| Customization: | Available |
| Standard: | DIN81915 |
| Certification: | DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK, etc. |

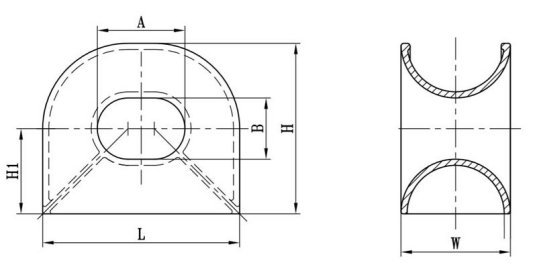

| Type | Wire W.L(kn) | H | H1 | W | L | A | B | Weight（kg) |
| C 2 | 20 | 315 | 158 | 200 | 360 | 160 | 115 | 26 |
| C 3 | 30 | 390 | 195 | 250 | 450 | 200 | 140 | 42 |
| C 5 | 50 | 480 | 240 | 300 | 550 | 250 | 180 | 74 |
| C 8 | 80 | 585 | 293 | 360 | 680 | 320 | 225 | 120 |
| C 12 | 125 | 710 | 355 | 440 | 840 | 400 | 270 | 185 |
| C 20 | 200 | 840 | 420 | 520 | 1020 | 500 | 320 | 285 |
| C 32 | 320 | 1100 | 550 | 700 | 1300 | 600 | 400 | 795 |
