| Application: | For ship fittings |
| Material: | Steel alloys |
| Customize: | Acceptable |
| Size: | 450x350，600x400，800x600 |
| Standard: | CB/T19-2001，ISO9001 |
| Certification: | LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc. |

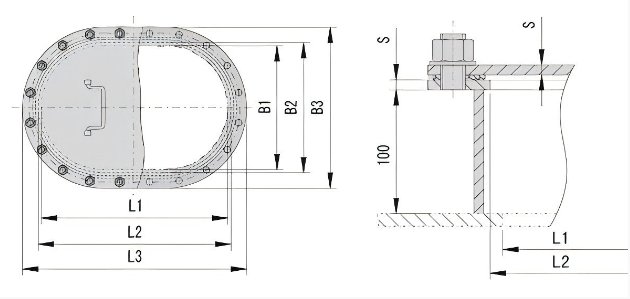

| Type | Nominal size | L1 | L2 | L3 | B1 | B2 | B3 | S | Fastener | Weight | |
| - | - | mm | Dai | Qut | kg | ||||||
| A | 450x350 | 450 | 470 | 570 | 350 | 370 | 470 | 4 6 10 | M20 | 16 | 23.2 30.8 36.9 45.8 |
| A | 600x400 | 600 | 620 | 720 | 400 | 420 | 520 | 6 8 10 12 | M20 | 20 | 48.8 59.2 69.3 79.6 |
| A | 800x600 | 800 | 820 | 920 | 600 | 620 | 720 | 8 10 12 14 | M20 | 26 | 52.4 65.8 78.2 90.2 |
