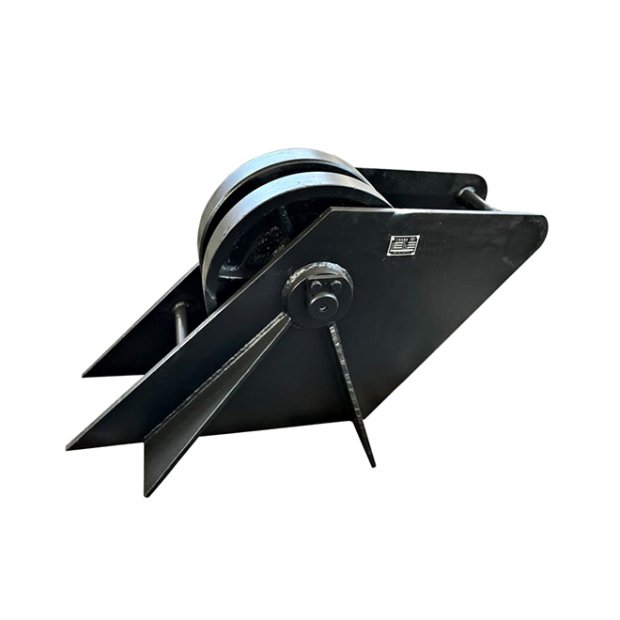

Marine Anchor Chain Wheel Ship For Hawse Pipe Deck

Detail chart

Detail Chart

Marine Anchor Chain Wheel Ship For Hawse Pipe Deck

Material:	Cast steel material
Diameter:	14mm~68mm
Treatment:	Anti-rust paint
Suitable chain size:	According to your requirements
Certification:	ISO9001, LR, ABS, DNV, BV, CCS, KR, RMRS, NK etc.

Inquiry Now

Description

Model	Applicable chain diameter	D	d	L	B	H	Weight
14	12.5-14	154	26	164	94	150	12.7
17.5	16-17.5	192	32	186	108	170	21
20.5	19-20.5	226	38	208	122	210	32.6
24	22-24	264	42	236	142	240	50
28	26-28	308	48	262	160	280	74
32	30-32	352	54	292	178	310	104.9
36	34-36	396	58	319	201	360	144.4
40	38-40	400	64	349	219	390	189.8
44	42-44	484	70	377	239	430	239.9
48	46-48	528	74	405	259	470	305.5
52	50-52	572	78	430	280	510	370.3
56	54-56	616	82	466	302	540	453.6
60	58-60	660	88	492	320	580	572.3
64	62-64	704	94	526	342	620	687.5
68	66-68	748	98	552	360	660	832.3
